Servo Standard Micro HS-81
Quick Overview
BH-2055Quick Overview
You get two choices with Hitec’s most popular servo the HS-81, resin or metal gears. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-81 offers a fine balance between speed and torque.
- Top Selling Micro Servo
- Strong Three-Pole Ferrite Motor
- Durable Nylon Gears
Details
|
Performance Specifications |
|
|
Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
|
Speed (Second @ 60°) |
0.11 ~ 0.09 |
|
Maximum Torque Range oz. / in. |
36 ~ 42 |
|
Maximum Torque Range kg. / cm. |
2.6 ~ 3.0 |
|
Current Draw at Idle |
8.8 mA |
|
No Load Operating Current Draw |
280 mA |
|
Stall Current Draw |
1,500 mA |
|
Dead Band Width |
8 µs |
|
Physical Specifications |
|
|

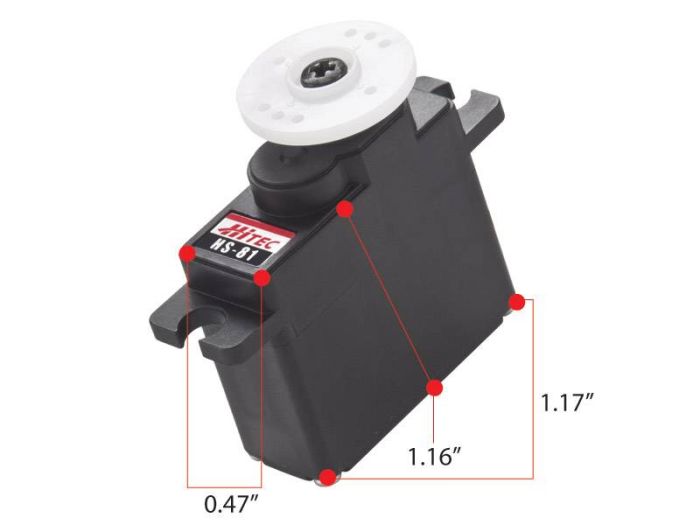

Dimensions (Inches) |
1.17 x 0.47 x 1.16 |
|
Dimensions (Metric) |
29.8 x 12.0 x 29.6 |
|
Weight (Ounces) |
0.58 |
|
Weight (Gram) |
16.6 |
|
Circuit Type |
HT7003 Analog SMT |
|
Motor Type |
3 Pole Metal Brush Ferrite |
|
Gear Material |
Nylon |
|
Bearing Type |
None |
|
Output Shaft (type / Ømm) |
Standard 24 |
|
Case Material |
Plastic |
|
Connector Gauge (AWG) / Strand Count |
28/20 |
Additional Information
| SKU | BH-2055 |
|---|
