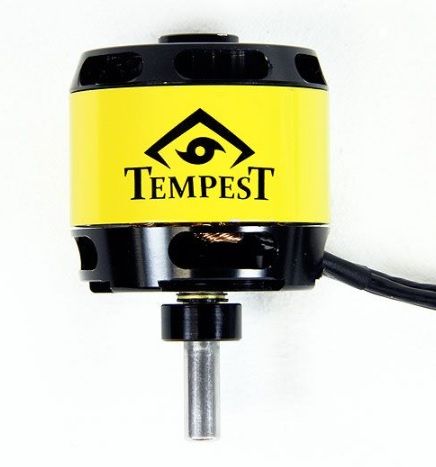

Tempest 2814-1400Kv Brushless Motor
Tempest 2814-1400Kv Brushless Motor by Brodak
Item#
Quick Overview
BH-1850
Availability: In stock
$60.99
Quick Overview
THIS IS A REPLACEMENT FOR OUR OLD BH-1850
Details
The Tempest 2814 is actually a bit larger and more powerful than the prior motor which will help reduce battery consumption versus the prior motor. NOTE This motor is configured for the Superclown, using front mounting and a collet style prop adapter, thus, it has DIFFERENT accesories than the same motor from Innov8tive sells. If you want the accessories that normally are included with the Innov8tive motor, you will need to purchase the bolt-on Thread Prop Adapter (BH-1812) ands the Cross Mount Set for Tempest Motors (#BH-1813) which enable this motor to be mounted from behind with the motor shaft projected through the motor mount.
| Tempest 2814-1400Kv Specifications |
|
|---|---|
| Stator Diameter | 28.0 mm (1.102 in) |
| Stator Thickness | 14.0 mm (0.551 in) |
| Number of Stator Slots | 12 |
| Number of Magnet Poles | 14 |
| Motor Wind | 12 Turn Delta |
| Motor Kv Value | 1400 RPM per Volt |
| No Load Current (Io) | 2.48 Amps @ 10 Volts |
| Motor Resistance (Rm) per Phase | 0.044 Ohms |
| Motor Resistance (Rm) Phase to Phase | 0.029 Ohms |
| Maximum Continuous Current | 50 Amps |
| Max Continuous Power (3-cell Li-Po) | 555 Watts |
| Max Continuous Power (4-cell Li-Po) | 840 Watts |
| Max Continuous Power (5-cell Li-Po) | 925 Watts |
| Motor Weight | 108 grams (3.81 oz.) |
| Outside Diameter | 35.4 mm (1.394 in.) |
| Shaft Diameter | 5.00 mm (0.197 in.) |
| Motor Body Length | 32.4 mm (1.276 in.) |
| Overall Shaft Length |
54.8 mm (2.157in.) |
| Motor Timing | 5-10 degrees or Auto |
| PWM Frequency | 8-16 KHz |
Additional Information
| SKU | BH-1850 |
|---|
