Tempest Cross Mount for 28mm Series Motors

Details

For use with the Tempest 2814 motor (BH-1850).  Bolt this to the rear of the motor to amount the motor for standard firewall style mount behind the motor.

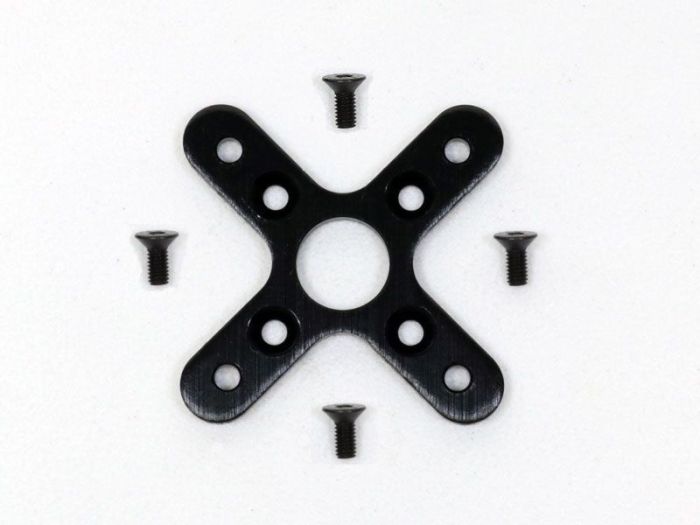

The Tempest 28mm Cross Style motor mount is stamped from high strength 3mm thick aluminum sheet stock and together with the 4 motor screws it weighs 7.8 grams.

The motor mount holes have a 25mm center to center spacing on both diagonals. The hole spacing for the firewall mounting holes is 42mm center to center as measured on the diagonals through the center of the mount.
