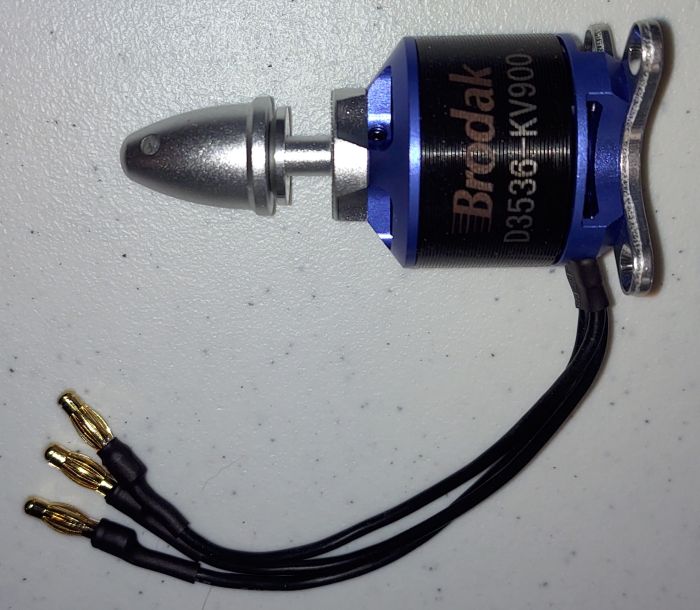

Electric Motor 3536 KV900

Electric Motor 3536 KV900 by Brodak
Item#

Quick Overview

BH-1840
Availability: In stock
$43.99
Qty:

Quick Overview

This motor replaces the Arrowind 2810 (#BH-1842) which is out of production. Made for us by StarPower Hobby Co Ltd, the size nomenclature depicts the exterior diameter (35mm) and & external length (36mm) of the motor shell. Based on internal dimensions (as are all the other Brodak outrunners) this corresponds to a 2814. The new motor is 4 mm longer internally making up for the 2 mm smaller diameter in the stator which results in a little more powerful motor.  The kV is lower so it will use a little less battery, especially when matched to 4-cell packs and slightly higher pitch props.  The new Brodak 35-36 (aka 2814) is designed for rear mounting (firewall style) only.  The X-plate has a smaller mounting pattern (42 mm ilo 50mm bolt circle)  and the motor itself uses a 25 mm x 19 mm bolt pattern unlike the previous motor.  However, it is possible to drill 2 new holes on the large Arrowind X-Plate to accept the new motor.  Surprisingly, the external length (from mounting surface to prop drive) is 4mm shorter in part because it uses a bolt-on prop adapter.  The motor with X-plate and prop adapter is 7 grams heavier than the obsolete motor

Details

CRITERIA

NEW

BRODAK 3536

(aka 2814)

REPLACES OLD: ARROWIND 2810

kV (RPM/Volt)

900

1100

WEIGHT

130 gr

(4.5 oz)

123 gr

(4.3 oz)

LENGTH: MOUNT TO DRIVE WASHER

44mm

(1.73”)

48mm

(1.89”)

CASE DIAMETER

35 mm

39 mm

CASE LENGTH

36 mm

31.5 mm

STATOR DIAMETER

28 mm

30 mm

MAGNET LENGTH

14 mm

10 mm

RECOMMENDED PROP

9x6 – 11x5

9x4.5-10x5

RECOMMENDED CELLS

4S LiPo

4S LiPo

Additional Information

SKU BH-1840
