Hitec HS-75BB Servo (Discontinued)

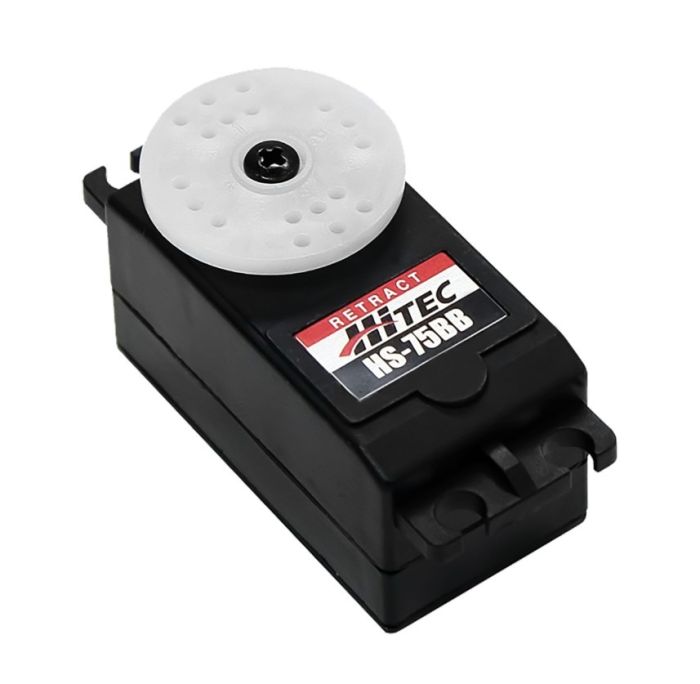

main product photo
Hitec HS-75BB Servo (Discontinued) by Brodak
Item#

Quick Overview

Hitec-31075S
Availability: In stock
$34.99
Qty:
Add to Wish List

Quick Overview

HS-75BB Servo-Clockwise

ONLY 1 IN STOCK

Details

Specs

Output Shaft Style C24T Spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.45sec/60°
No-Load Speed (6.0V) 0.34sec/60°
Stall Torque (4.8V) 91.65 oz-in (6.6 kg.cm)
Stall Torque (6.0V) 113.87 oz-in (8.2 kg.cm)
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Current Drain - idle (4.8V) 1mA
Current Drain - idle (6.0V) 1.6mA
Current Drain - no-load (4.8V) 150mA
Current Drain - no-load (6V) 180mA
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 20µs
Motor Type 3 Pole Ferrite
Feedback Style Indirect Switch Drive
Output Shaft Support Top Ball Bearing
Gear Material 1 Metal and 4 POM Resin Gears
Wire Length 11.81" (300mm)
Weight 1.23oz (35g)
Wire Gauge 25AWG
Rotation 180°

Additional Information

SKU Hitec-31075S
