Universal “E” Electric Conversion (for Profile Fuselages & Front Mounted Motors)
Universal “E” Electric Conversion (for Profile Fuselages & Front Mounted Motors) by Brodak
Item#
Quick Overview
BH-2022Availability: In stock
$26.75
Quick Overview

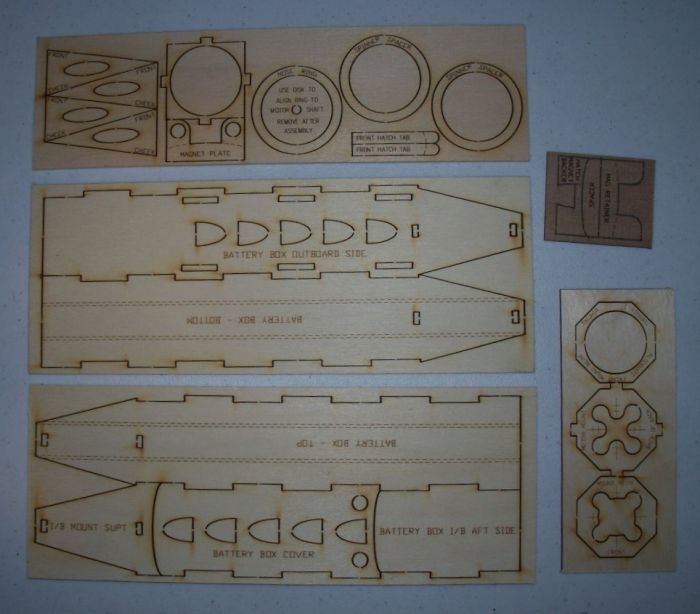

Designed by Dennis Adamisin for long-nosed profile fuselages & for front mounted motors. Includes 5 laser cut ply sheets and photo illustrated instructions.Details
- The complete box & mount is 2" tall x 2" wide x 10.5” long. It can be cut as short as 6.75” and still accept the VANT 4S x 2700 battery (#BH-1847).
- The motor mount is designed for 28xx size Front Mounted motors (external diameter up to 39mm) like the Brodak 2826 (#BH-2076) and will accept mounting bolt circles of 19 mm-25 mm.
- The battery compartment can fit Lipo’s up to 1.75” tall x 1.75” wide x 8” long. Shorter batteries can be moved fore/aft for CG adjustment.
- Battery access is on the inboard side of the fuselage and the battery compartment includes a cover.
- The battery box is designed to intersect the wing leading edge to provide additional stiffness at the wing to fuselage joint; traditionally a problem area on profiles.
- The 8 page manual includes 80 pictures to help guide you through the installation process.
This motor mount & battery box presents a very clean design that accepts a 1.75" spinner, transitioning from round, to a rounded octagon to square cross section at the battery compartment.
Additional Information
SKU | BH-2022 |
---|
