Brodak .15 Engine

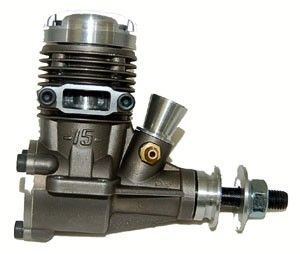

main product photo
Brodak .15 Engine by Brodak
Item#

Quick Overview

BE-1326

Availability: Out of stock

$98.99
Add to Wish List

Quick Overview

The Brodak .15 control line engine is a high precision engine designed for a very specific purpose, which is to reliably cycle on and off power during the entire flight.

DOES NOT include a glow plug.

Details

DISPLACEMENT:

.15 in. SHAFT: 3mm (.118)

STROKE: .582 in.

BORE: .572 in.

RPM: 8,000 to 12,000

PROP: 7x6 to 9x4

WEIGHT: 4.4 oz. (without muffler) Includes a muffler.

Muffler Weight: 1.0 oz





Mounting Dimensions:





Crancase Over-all Dimensions:

SIDE TO SIDE – 1-19/32”

FRONT TO BACK – 13/16”



 Mounting Hole Dimensions:

SIDE TO SIDE – 1-21/64”

FRONT TO BACK – 1/2”

Additional Information

SKU BE-1326
Other Items Required:
