Cobra C-2204/32 Brushless Motor Kv=1960

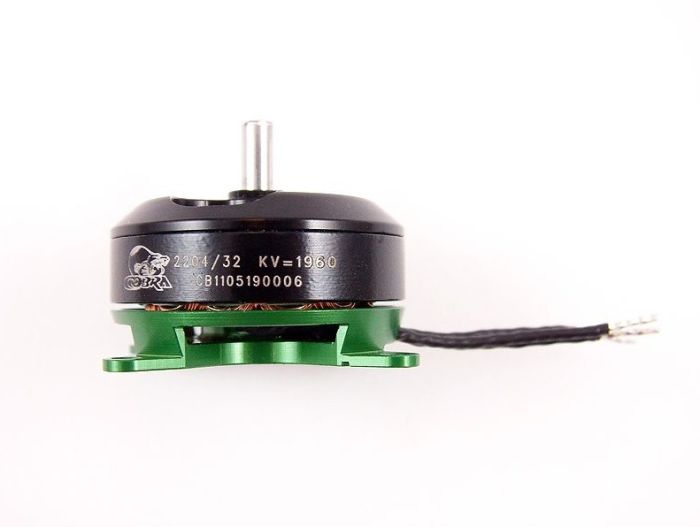

main product photo
Cobra C-2204/32 Brushless Motor Kv=1960 by Innov8tive Designs
Item#

Quick Overview

BH-1837
Availability: In stock
$24.99
Qty:
Add to Wish List

Quick Overview

INCLUDED WITH THIS MOTOR:

● Four M2x8mm Motor Mount Screws
● O-ring prop adapter with 2 screws
● 20mm dia. x 2mm O-Ring

Details

Cobra 2204/32 Motor Specifications
 Stator Diameter  22.0 mm (0.866 in)
 Stator Thickness  4.0 mm (0.157 in)
 Number of Stator Slots  12
 Number of Magnet Poles  14
 Motor Wind  32 Turn Delta
 Motor Kv Value  1960 RPM per Volt
 No Load Current (Io)  0.58 Amps @ 8 Volts
 Motor Resistance (Rm) per Phase  0.153 Ohms
 Motor Resistance (Rm) Phase to Phase  0.102 Ohms
 Maximum Continuous Current  12 Amps
 Max Continuous Power (2-cell Li-Po)  90 Watts
 Max Continuous Power (3-cell Li-Po)  130 Watts
 Motor Weight  22.5 grams (0.79 oz.)
 Outside Diameter  27.0 mm (1.063 in.)
 Shaft Diameter  3.00 mm (0.118 in.)
 Motor Body Length  14.2 mm (0.559 in.)
 Overall Shaft Length  21.8 mm (0.858 in.)
 Motor Timing  5-10 degrees
 PWM Frequency  8 KHz

The O-Ring prop adapter is a reversible unit with a 5.5mm centering ring on one side to fit GWS Slow-Fly props, and a 7.0mm centering ring on the other side to fit GWS DD series props. With the proper center hole adapter ring, GWS Slow-Fly props and other brands will also fit perfectly on the prop adapter.

Additional Information

SKU BH-1837
