ESC 12 AMP ( for 1/2A's)

ESC 12 AMP ( for 1/2A's)
by HTiRC

Item#BH-1862

Availability: In stock

$21.99

Quick Overview

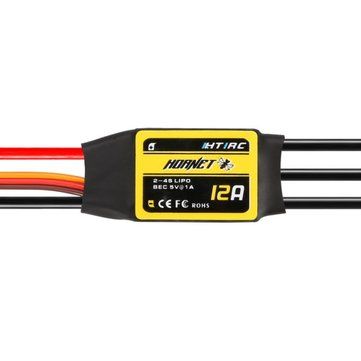

Hornet  12A 2-4S Brushless ESC With 5V/1A BEC


Burst Current: 15A
BEC Type: 5V/3A
Battery Cell: 2-4LiPo/5-12NC
Output: Continuous 12A
Length: m24m
Width: 19mm
Height: 6.5mmWeight: 11g



ESC 12 AMP ( for 1/2A's)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

- Utilize powerful and high-performance MCU processor. The users can set using function according to their requirements, which fully reflects the smart feature of our products as a unique advantage.
- Support unlimited rotate speed of brushless motor.
- Elaborately designed circuit with strong anti-interference.
- The starting mode can be set. The throttle response speed is very fast and the linear speed regulation is very stable. It can be used in fixed-wing aircraft and helicopter.
- Internally installed SBEC/UBEC, the operating power to start servos is strong.
- Multi protection functions: abnormal input voltage protection; battery low-voltage protection; over-heat protection; throttle signals loss protection.
- Over-heat protection: the output power will auto-power reduce when the temperature reaches 120
during the operation of ESC. The output power will automatic recover when the temperature under 120.
- Compatible with all transmitters control settings; support programming settings.

Additional Information
