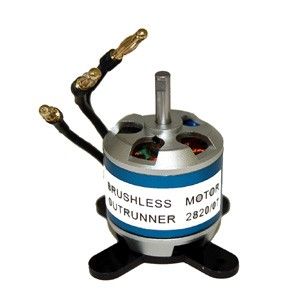

Electric Motor EF-1 Racing

Electric Motor EF-1 Racing
by Brodak

Item#BH-1834

Availability: In stock

$59.99

Quick Overview

Specially designed for the new EF-1 Pylon Racing Class. The "NMPRA-Approved" motor is a special racing version of the Arrowind 2820. Includes prop adapter, 4.0mm bullet connectors and "X" mounting plate.
Use with 4S Li-Poly battery,

RPM/V=1300
Max Current=90A
Dimensions (dia. x length) 39 x 41.5mm
Stator Dimensions 30 x 20mm
Shaft diameter 5 mm
Weight: 5.9 oz. (168g)
Recommended prop: APC 8x8
Recommended model weight = see EF1 rules

Electric Motor EF-1 Racing

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Specially designed for the new EF-1 Pylon Racing Class. The "NMPRA-Approved" motor is a special racing version of the Arrowind 2820. Includes prop adapter, 4.0mm bullet connectors and "X" mounting plate. Use with 4S Li-Poly battery, RPM/V=1300 Max Current=90A Dimensions (dia. x length) 39 x 41.5mm Stator Dimensions 30 x 20mm Shaft diameter 5 mm Weight: 5.9 oz. (168g) Recommended prop: APC 8x8 Recommended model weight = see EF1 rules

Additional Information

SKU BH-1834
