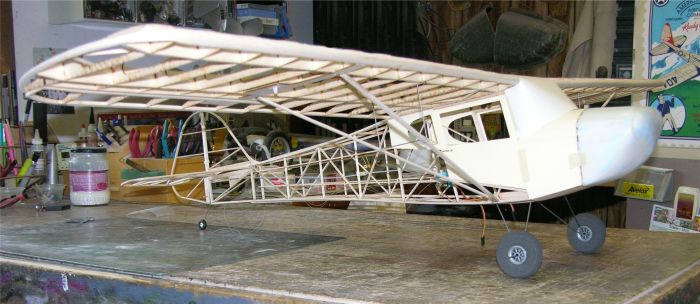

Dare Taylorcraft BC-12 (60" wingspan)

Dare Taylorcraft BC-12 (60" wingspan)
by Brodak

Item#DA-559

Availability: In stock

$89.95

Quick Overview

The 60" Taylorcraft is economical to build and fly with clean, quiet electric power and 4 channel control. It's a lightweight and a very gentle docile flyer, large enough for sanctioned fields and perfect for those smaller venues.


Designed with removable wings for easy transport. The cabin doors open for easy access to internal components and battery location. This model was built around the Suppo 2217/9T outrunner motor and uses four 6-9 gram Sub-Micro Servos to control ailerons, elevator and rudder. A 20A ESC takes care of throttle and a 1300-1800 Lipo battery provides power for up to 25-minute flights.


Dare Taylorcraft BC-12    (60" wingspan)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Specifications

Wing Span: 60 in.
Plane Length: 36-3/4"
Wing Area: 525 sq. in.
Engine: Suppo 2217/9T Outrunner

Details

OTHER ITEMS REQUIRED

(1)  Pr. 2-1/2” Main Wheels

(1)  ¾” Tailwheel

(2)  3/32” Wheel Collars

(3)  #2 x ½” Motor Mounting Sheet Metal Screws

(1)  Manilla File Folder (to make cowl panels)

(2)  Rolls Coverite Microlite or Equivalent

(1)  .032 I.D. x 24” Plastic Tube (if needed) for Elevator Pushrod

      Brass Tube as needed for Main Wheel Bushings

      Copper Wire (Landing Gear Wrap)

      Sta-Brite Silver Solder (Landing Gear)

      3/16 Artists Foam Board (Bowing Patterns)

Electric Power Recommendation:
450 Outrunner
18A ESC
11-5.5E Prop
12200 2S Lipo

Additional Information

SKU DA-559

Kit Features

Laser cut balsa and ply parts, full size plans, instructions, vac formed cowl, wire, hardware, clear acetate and more.
